Waterfalls

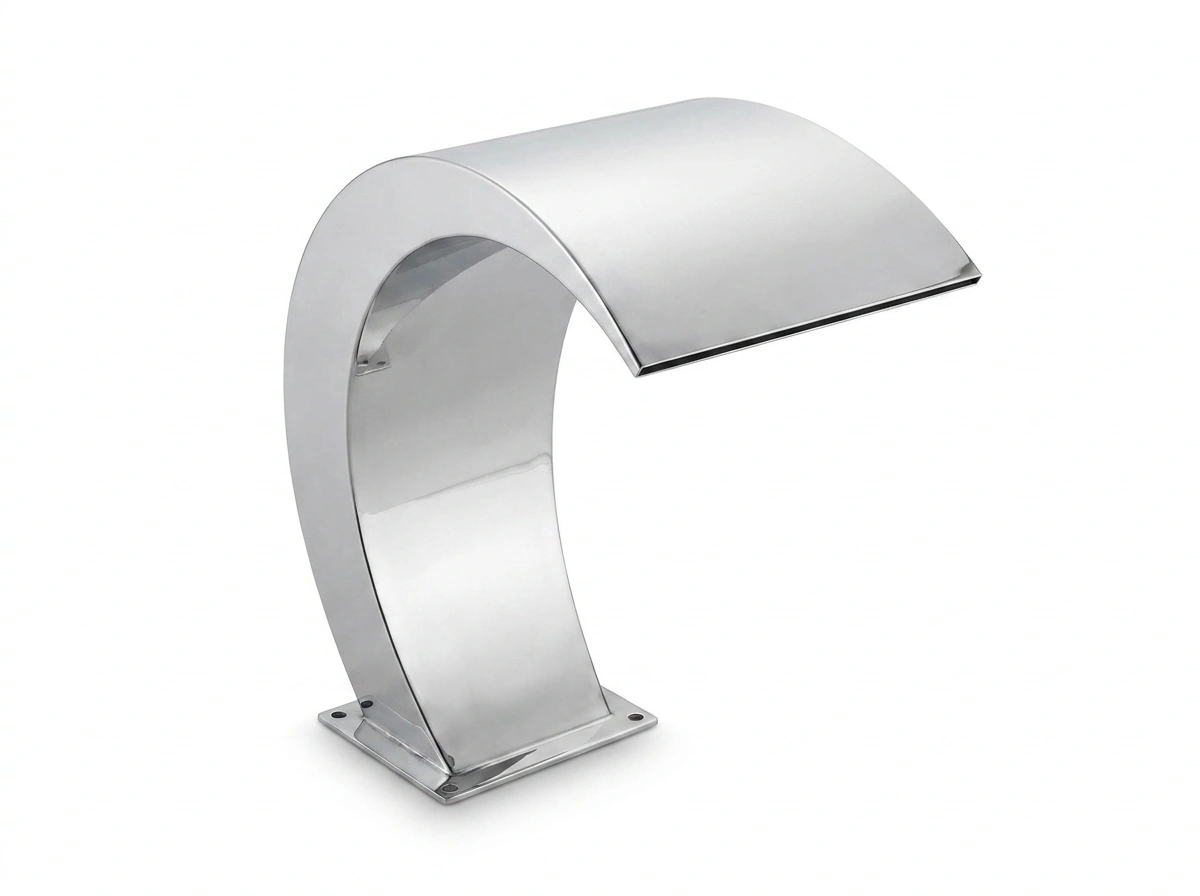

COBRA WATERFALL SERIES — 350-900mm
Cobra-type waterfall series delivering a relaxing water massage to the shoulder area in spa pools. Manufactured in AISI 304 and AISI 316 grade stainless steel with a matte finish; wall-mounted at the pool edge to provide decorative and therapeutic water flow. Available in 350x350mm, 500x500mm, 800x400mm and 900x600mm sizes. AISI 316 grade is recommended for salt or thermal water use. Bolts and anchor sleeves are included; anchoring is priced separately.
Click to zoom
Product Information
Cobra-type waterfall series delivering a relaxing water massage to the shoulder area in spa pools. Manufactured in AISI 304 and AISI 316 grade stainless steel with a matte finish; wall-mounted at the pool edge to provide decorative and therapeutic water flow. Available in 350x350mm, 500x500mm, 800x400mm and 900x600mm sizes. AISI 316 grade is recommended for salt or thermal water use. Bolts and anchor sleeves are included; anchoring is priced separately.
Technical Parameters
AISI 304
WFC35350x350mm
- Dimension
- 350x350 mm
- Connection Diameter
- Ø50 mm
- Recommended Pump Flow Rate
- 12 m³/h
- Weight
- 8 kg
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; chlorine-resistant
WFC50500x500mm
- Dimension
- 500x500 mm
- Connection Diameter
- —
- Recommended Pump Flow Rate
- —
- Weight
- —
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; chlorine-resistant
WFC80800x400mm
- Dimension
- 800x400 mm
- Connection Diameter
- Ø63 mm
- Recommended Pump Flow Rate
- 20 m³/h
- Weight
- 20 kg
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; chlorine-resistant
WFC90900x600mm
- Dimension
- 900x600 mm
- Connection Diameter
- Ø63 mm
- Recommended Pump Flow Rate
- 30 m³/h
- Weight
- 27 kg
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; chlorine-resistant
AISI 316
WFC35-316350x350mm
- Dimension
- 350x350 mm
- Connection Diameter
- Ø50 mm
- Recommended Pump Flow Rate
- 12 m³/h
- Weight
- 8 kg
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; resistant to salt and thermal water
WFC50-316500x500mm
- Dimension
- 500x500 mm
- Connection Diameter
- —
- Recommended Pump Flow Rate
- —
- Weight
- —
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; resistant to salt and thermal water
WFC80-316800x400mm
- Dimension
- 800x400 mm
- Connection Diameter
- Ø63 mm
- Recommended Pump Flow Rate
- 20 m³/h
- Weight
- 20 kg
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; resistant to salt and thermal water
WFC90-316900x600mm
- Dimension
- 900x600 mm
- Connection Diameter
- Ø63 mm
- Recommended Pump Flow Rate
- 30 m³/h
- Weight
- 27 kg
- Surface
- Matte (polished finish available for a 10% surcharge)
- Mounting Type
- Mounted on pool edge wall
- Durability
- Grounding mandatory; resistant to salt and thermal water
Technical Parameters
AISI 304
| Code | WFC35 | WFC50 | WFC80 | WFC90 |
| Size | 350x350mm | 500x500mm | 800x400mm | 900x600mm |
| Dimension | 350x350 mm | 500x500 mm | 800x400 mm | 900x600 mm |
| Connection Diameter | Ø50 mm | — | Ø63 mm | Ø63 mm |
| Recommended Pump Flow Rate | 12 m³/h | — | 20 m³/h | 30 m³/h |
| Weight | 8 kg | — | 20 kg | 27 kg |
| Surface | Matte (polished finish available for a 10% surcharge) | Matte (polished finish available for a 10% surcharge) | Matte (polished finish available for a 10% surcharge) | Matte (polished finish available for a 10% surcharge) |
| Mounting Type | Mounted on pool edge wall | Mounted on pool edge wall | Mounted on pool edge wall | Mounted on pool edge wall |
| Durability | Grounding mandatory; chlorine-resistant | Grounding mandatory; chlorine-resistant | Grounding mandatory; chlorine-resistant | Grounding mandatory; chlorine-resistant |
AISI 316
| Code | WFC35-316 | WFC50-316 | WFC80-316 | WFC90-316 |
| Size | 350x350mm | 500x500mm | 800x400mm | 900x600mm |
| Dimension | 350x350 mm | 500x500 mm | 800x400 mm | 900x600 mm |
| Connection Diameter | Ø50 mm | — | Ø63 mm | Ø63 mm |
| Recommended Pump Flow Rate | 12 m³/h | — | 20 m³/h | 30 m³/h |
| Weight | 8 kg | — | 20 kg | 27 kg |
| Surface | Matte (polished finish available for a 10% surcharge) | Matte (polished finish available for a 10% surcharge) | Matte (polished finish available for a 10% surcharge) | Matte (polished finish available for a 10% surcharge) |
| Mounting Type | Mounted on pool edge wall | Mounted on pool edge wall | Mounted on pool edge wall | Mounted on pool edge wall |
| Durability | Grounding mandatory; resistant to salt and thermal water | Grounding mandatory; resistant to salt and thermal water | Grounding mandatory; resistant to salt and thermal water | Grounding mandatory; resistant to salt and thermal water |
Usage & Care Notes
- If the water you use is thermal or salt water, choose an AISI 316-grade or 316-titanium-alloy stainless product.
- All products must be grounded by authorized personnel.
- Polished-surface products should be cleaned more frequently than matte products to preserve their appearance.
- Before first use, clean the product with a Scotch-Brite pad or similar material; this removes any rust effect caused by iron dust picked up during transport.
- If the product appears rusted, first check that your pool water does not contain iron.
- For products affected by iron dust, authorized personnel should apply PELOX solution while wearing gloves, goggles and a mask, rinse thoroughly with water, and restore the original finish with suitable polishing materials.
- Operate at the recommended pump power for maximum efficiency, and have all connections made by an authorized service provider.
- When ordering, specify whether the water inlet should be plain, sleeved or nippled.
