Fountains & Geysers
STAINLESS FOAM NOZZLE SERIES
Stainless-bodied nozzle series that creates a foam effect with adjustable flow. Available in 35-10E (1"), 55-15E (1½") and 75-20E (2") sizes; the 35-10E and 55-15E sizes offer a Brass Ball or Plastic internal assembly, while the 75-20E size is offered only with a Plastic internal assembly.
Click to zoom
1"157 mm48 mm
İç Aksam Seçeneği
Contact us for technical details and pricing.
Product Code: KN3510-1 · Available on Request
Product Information
Stainless-bodied nozzle series that creates a foam effect with adjustable flow. Available in 35-10E (1"), 55-15E (1½") and 75-20E (2") sizes; the 35-10E and 55-15E sizes offer a Brass Ball or Plastic internal assembly, while the 75-20E size is offered only with a Plastic internal assembly.
Technical Parameters
Sarı Küreli
KN3510-135-10E (1")
- Connection
- 1"
- Dimension A
- 157 mm
- Dimension B
- 48 mm
- Dimension C
- 31 mm
- Body Material
- Bronze
- Internal Components
- Brass Ball
- Weight
- 280 g
- Flow Rate Range
- 3.10–6.50 m³/h at 0.25–1.50 m water height

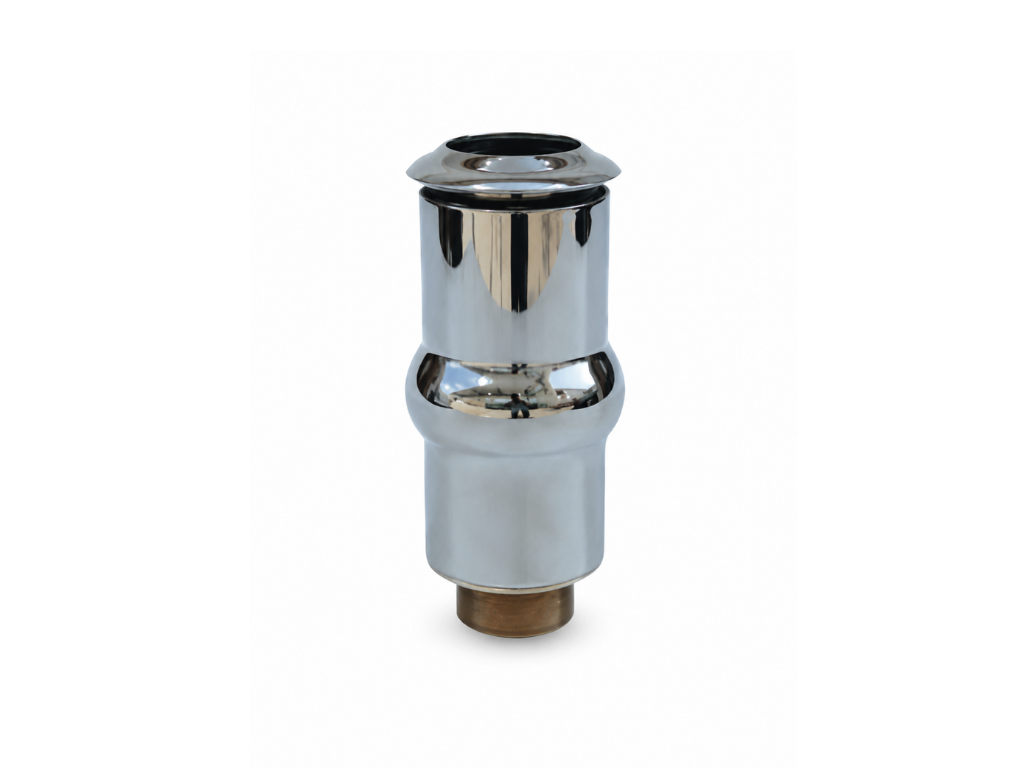

KN5515-155-15E (1½")
- Connection
- 1½"
- Dimension A
- 195 mm
- Dimension B
- 80 mm
- Dimension C
- 48 mm
- Body Material
- Bronze
- Internal Components
- Brass Ball
- Weight
- 1440 g
- Flow Rate Range
- 6.00–13.00 m³/h at 0.25–1.50 m water height
Plastik
KN3510-235-10E (1")
- Connection
- 1"
- Dimension A
- 157 mm
- Dimension B
- 48 mm
- Dimension C
- 31 mm
- Body Material
- Bronze
- Internal Components
- Plastic
- Weight
- 280 g
- Flow Rate Range
- 3.10–6.50 m³/h at 0.25–1.50 m water height
KN5515-255-15E (1½")
- Connection
- 1½"
- Dimension A
- 195 mm
- Dimension B
- 80 mm
- Dimension C
- 48 mm
- Body Material
- Bronze
- Internal Components
- Plastic
- Weight
- 1440 g
- Flow Rate Range
- 6.00–13.00 m³/h at 0.25–1.50 m water height
KN7520-175-20E (2")
- Connection
- 2"
- Dimension A
- 265 mm
- Dimension B
- 102 mm
- Dimension C
- 72 mm
- Body Material
- Bronze
- Internal Components
- Plastic
- Weight
- 2350 g
- Flow Rate Range
- 14.00–24.00 m³/h at 0.25–1.50 m water height
Technical Parameters
Sarı Küreli
| Code | KN3510-1 | KN5515-1 |
| Size | 35-10E (1") | 55-15E (1½") |
| Connection | 1" | 1½" |
| Dimension A | 157 mm | 195 mm |
| Dimension B | 48 mm | 80 mm |
| Dimension C | 31 mm | 48 mm |
| Body Material | Bronze | Bronze |
| Internal Components | Brass Ball | Brass Ball |
| Weight | 280 g | 1440 g |
| Flow Rate Range | 3.10–6.50 m³/h at 0.25–1.50 m water height | 6.00–13.00 m³/h at 0.25–1.50 m water height |
Plastik
| Code | KN3510-2 | KN5515-2 | KN7520-1 |
| Size | 35-10E (1") | 55-15E (1½") | 75-20E (2") |
| Connection | 1" | 1½" | 2" |
| Dimension A | 157 mm | 195 mm | 265 mm |
| Dimension B | 48 mm | 80 mm | 102 mm |
| Dimension C | 31 mm | 48 mm | 72 mm |
| Body Material | Bronze | Bronze | Bronze |
| Internal Components | Plastic | Plastic | Plastic |
| Weight | 280 g | 1440 g | 2350 g |
| Flow Rate Range | 3.10–6.50 m³/h at 0.25–1.50 m water height | 6.00–13.00 m³/h at 0.25–1.50 m water height | 14.00–24.00 m³/h at 0.25–1.50 m water height |
