Waterfalls
LINEAR WATERFALL SERIES

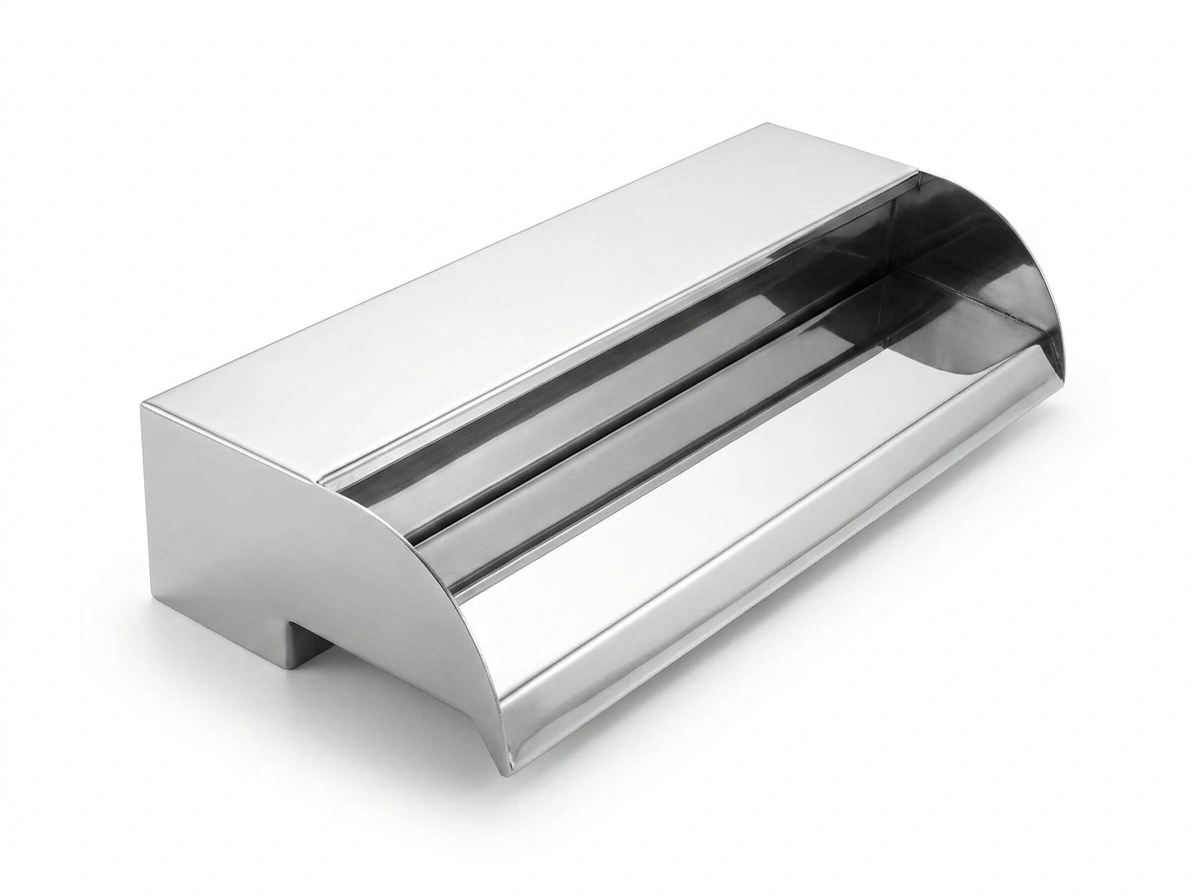

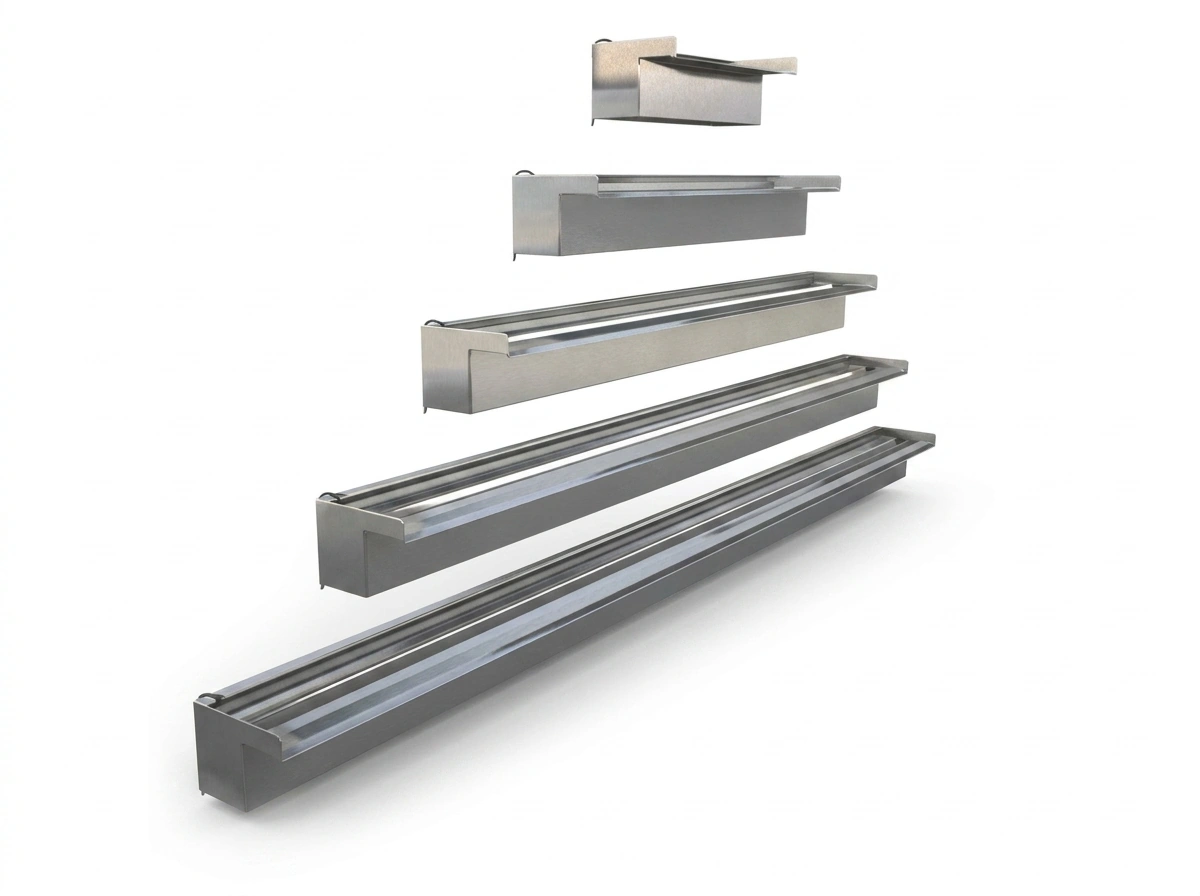

Linear waterfall series that forms a thin and even water curtain through its straight channel body. Manufactured in a range of length options; custom lengths to project dimensions are also possible. Manufactured in AISI 304 and AISI 316 stainless steel grades; AISI 316 grade is recommended for salt or thermal water use.
Click to zoom
AISI 316 Stainless SteelMade to project dimensions, with multiple length optionsMatte (polished surface +10% surcharge)
Contact us for technical details and pricing.
Product Code: WFLN-316 · Available on Request
Product Information
Linear waterfall series that forms a thin and even water curtain through its straight channel body. Manufactured in a range of length options; custom lengths to project dimensions are also possible. Manufactured in AISI 304 and AISI 316 stainless steel grades; AISI 316 grade is recommended for salt or thermal water use.
Technical Parameters
WFLNAISI 304
- Available Lengths
- Made to project dimensions, with multiple length options
- Material
- AISI 304 Stainless Steel
- Surface
- Matte (polished surface +10% surcharge)
- Mounting Type
- Mounted on the pool edge wall
- Durability
- Grounding required; chlorine-resistant
WFLN-316AISI 316
- Available Lengths
- Made to project dimensions, with multiple length options
- Material
- AISI 316 Stainless Steel
- Surface
- Matte (polished surface +10% surcharge)
- Mounting Type
- Mounted on the pool edge wall
- Durability
- Grounding required; resistant to salt and thermal water
Technical Parameters
| Code | WFLN | WFLN-316 |
| Grade | AISI 304 | AISI 316 |
| Available Lengths | Made to project dimensions, with multiple length options | Made to project dimensions, with multiple length options |
| Material | AISI 304 Stainless Steel | AISI 316 Stainless Steel |
| Surface | Matte (polished surface +10% surcharge) | Matte (polished surface +10% surcharge) |
| Mounting Type | Mounted on the pool edge wall | Mounted on the pool edge wall |
| Durability | Grounding required; chlorine-resistant | Grounding required; resistant to salt and thermal water |
Usage & Care Notes
- If the water you use is thermal or salt water, choose an AISI 316-grade or 316-titanium-alloy stainless product.
- All products must be grounded by authorized personnel.
- Polished-surface products should be cleaned more frequently than matte products to preserve their appearance.
- Before first use, clean the product with a Scotch-Brite pad or similar material; this removes any rust effect caused by iron dust picked up during transport.
- If the product appears rusted, first check that your pool water does not contain iron.
- For products affected by iron dust, authorized personnel should apply PELOX solution while wearing gloves, goggles and a mask, rinse thoroughly with water, and restore the original finish with suitable polishing materials.
- Operate at the recommended pump power for maximum efficiency, and have all connections made by an authorized service provider.
- When ordering, specify whether the water inlet should be plain, sleeved or nippled.
Technical Drawing Downloads
Related Products
Often Bought With LINEAR WATERFALL SERIES
Get a quote for LINEAR WATERFALL SERIES
Contact us for technical details, dimensions and pricing — we respond within 24 hours.
AISI 304/316 StainlessIP68 CertifiedCE Compliant
